Pro Eco - Wheel Balancer
Pro/Eco - Wheel Balancing Machine
Wheel balancing machines are important equipment used to ensure the balance of car wheels and rims.
These machines enhance driving comfort by ensuring tires rotate smoothly and evenly, while also extending the life of wheels and rims. Additionally, a balanced wheel-rim combination enhances vehicle performance and optimizes fuel efficiency.

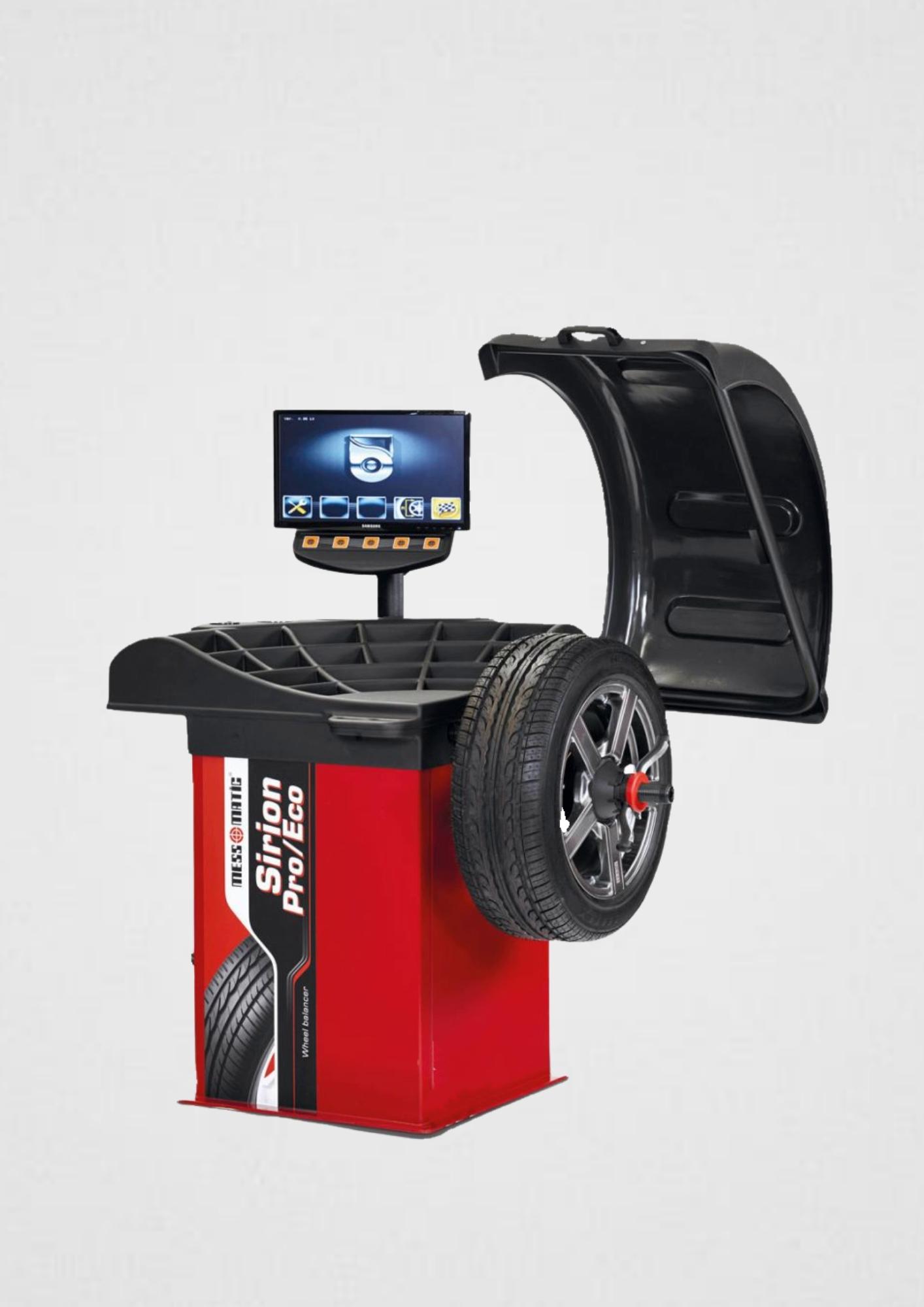

Our Pro/Eco wheel balancing machine is equipped with an LCD screen, single laser, micro switch sonar, and a powerful motor. These features enable users to easily monitor operations. Multi-functional symbols and keypads assist operators in quickly and accurately performing tasks. Pro/Eco wheel balancing machine is the economical model of the Pro Series.
- 19” LCD Monitor with 3D graphics.
- Easy operation with multi-functional keyboard
- Automatic Start by lowering the wheel guard.

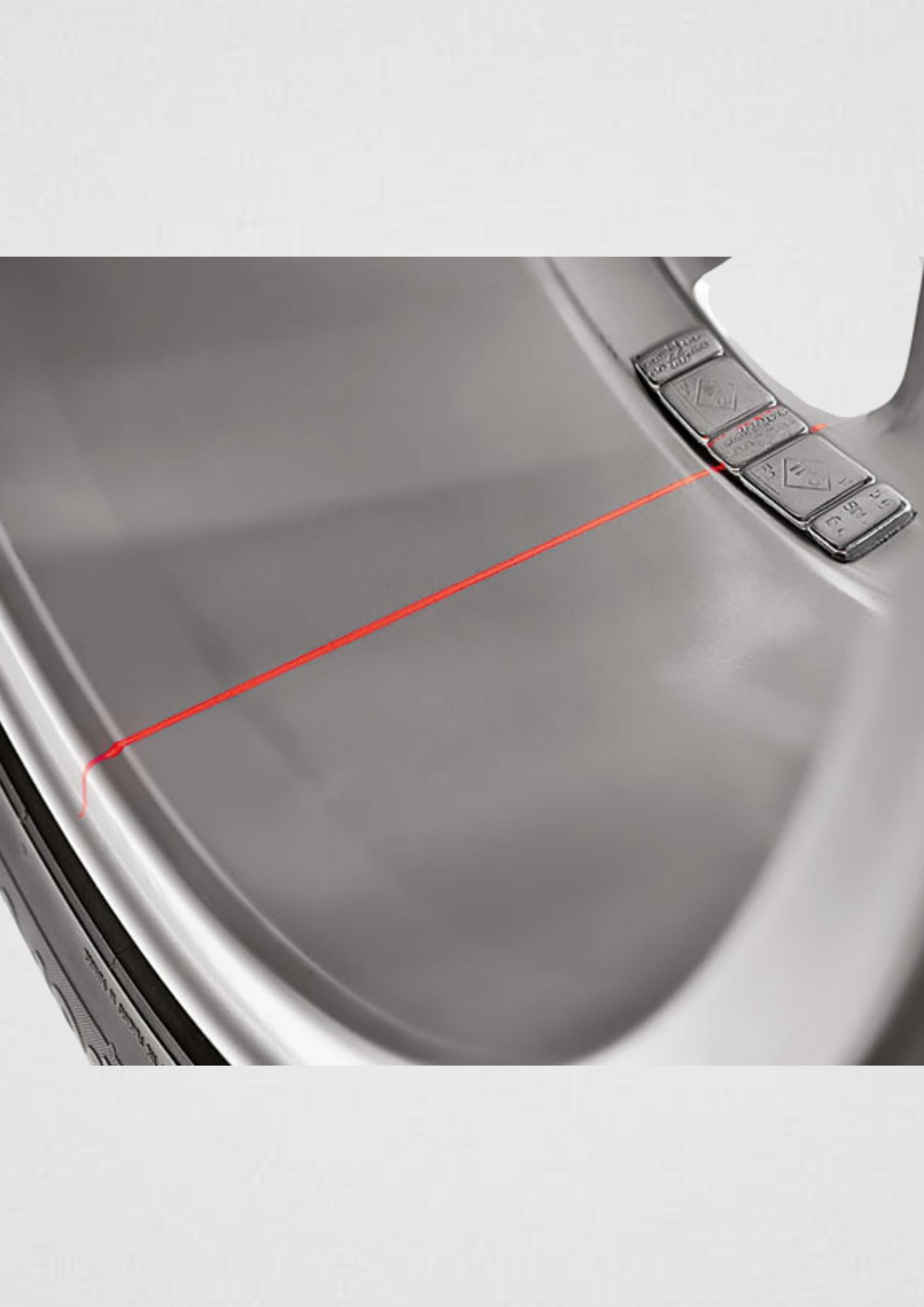

- Laser indicator for outer plane correction positioning insidethe rim (adhesive weight)
- Automatic input of wheel distance and diameter.

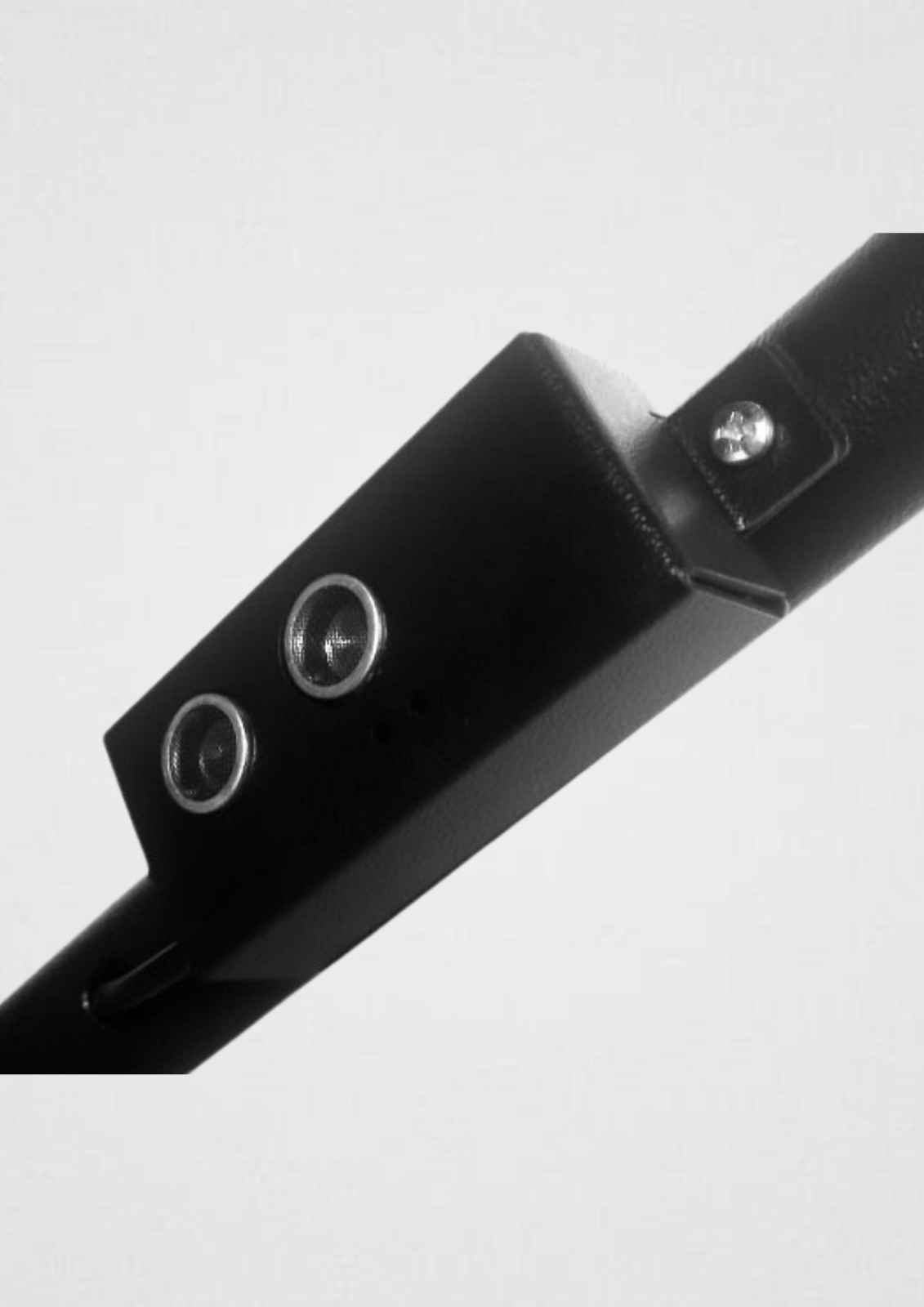

- Automatic input of wheel width with sonar system
- Self-calibration and self-diagnosis programs
- ALU/ALU-S/ALU-S1programs for aluminum wheels

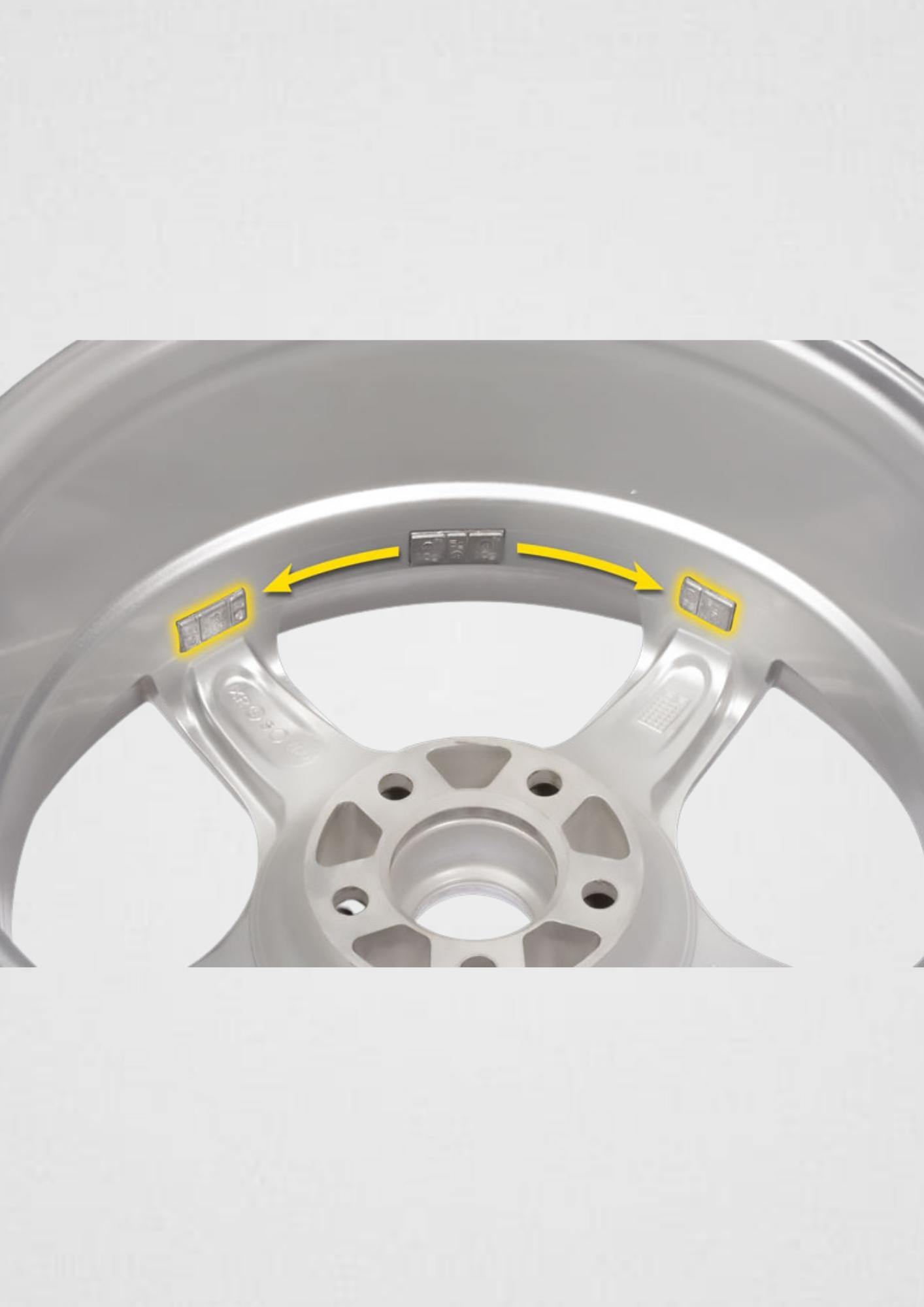

- SPLIT (Hidden Weight) program to divide counterweights behind spokes of alloy rims
- Optimization program to compensate the tyre unbalance with the rim unbalance

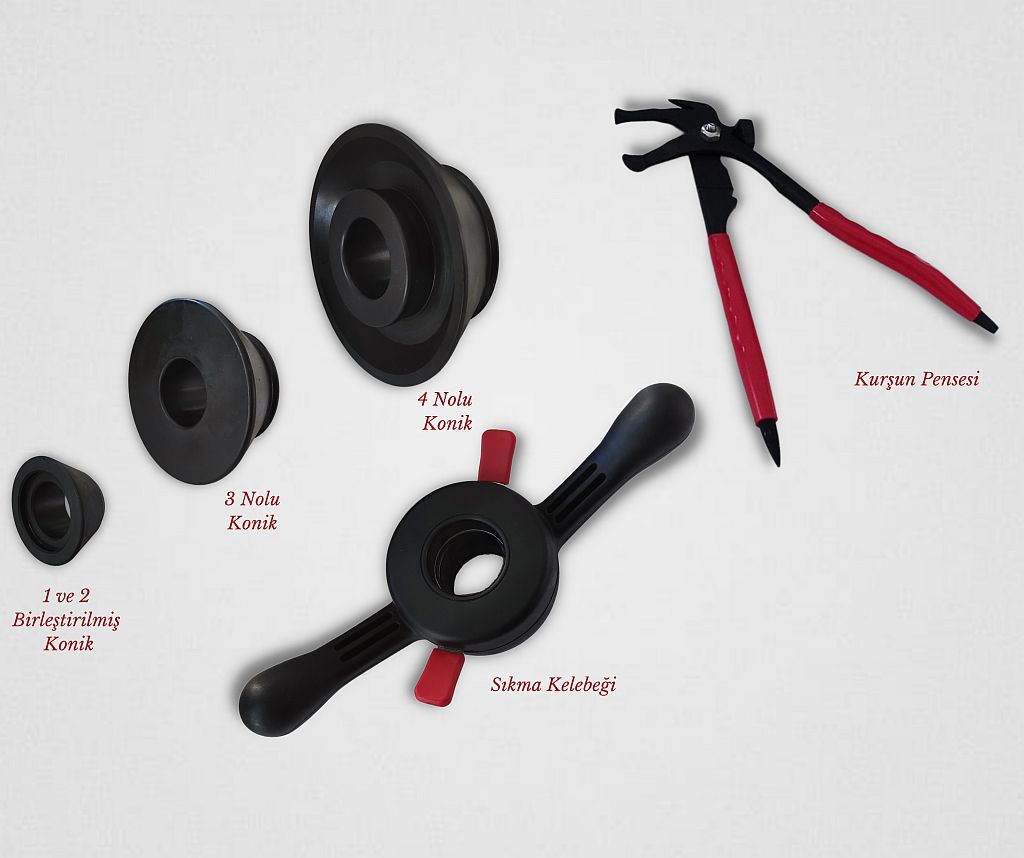

- Cone No. 1-2 combined
- Cone No. 3-4
- Clamping Sleeve
- Plier
- 2 Pieces universal Ford cone
- 5 Wheel bolt apparatus (for rims with closed hub)
- Airlock - Mechanical with air tightening
- Touchscreen
Technical Specifications
Downloads
Videos
More Information
| Technical Specifications | Unit | Pro/S Plus | Pro/S | Pro/Eco | Lx/Eco | Raptor | Hector | Sirion Truck |
| Vehicle Type | Passenger and light commercial vehicles | Passenger and light commercial vehicles | Passenger and light commercial vehicles | Passenger and light commercial vehicles | Passenger and light commercial vehicles | Passenger and light commercial vehicles | Truck, passenger and light commercial vehicles | |
| Max. Wheel Weight | kg | 75 | 75 | 70 | 65 | 75 | 65 | 250 |
| Max. Wheel Diameter | inch | 40" | 40" | 40" | 40" | 40" | 40" | 1300 mm |
| Rim Diameter | inch | 10" - 30" | 10" - 30" | 10" - 30" | 10" - 30" | 10" - 30" | 10" - 30" | 10" - 30" |
| Rim Width | inch | 1.5" - 20" | 1.5" - 20" | 1.5" - 20" | 1.5" - 20" | 1.5" - 20" | 1.5" - 20" | 1.5" - 20" |
| Cycle Time | sec. | 6 | 6 | 8 | 8 | 6 | 8 | 8 - 20 |
| Rotation Speed | rpm | 120 | 120 | 120 | 120 | 120 | 120 | 150 rpm (passenger cars) - 80 rpm (trucks) |
| Sensitivity | gr | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Power | 230/1 50/60 Hz. | 230/1 50/60 Hz. | 230/1 50/60 Hz. | 230/1 50/60 Hz. | 230/1 50/60 Hz. | 230/1 50/60 Hz. | 230/1 50/60 Hz. | |
| Air Pressure | bar | Optional 8 Bar | Optional 8 Bar | Optional 8 Bar | Optional 8 Bar | Optional 8 Bar | Optional 8 Bar | Optional 8 - 10 Bar |
