Automatic Tire Balancing Machines

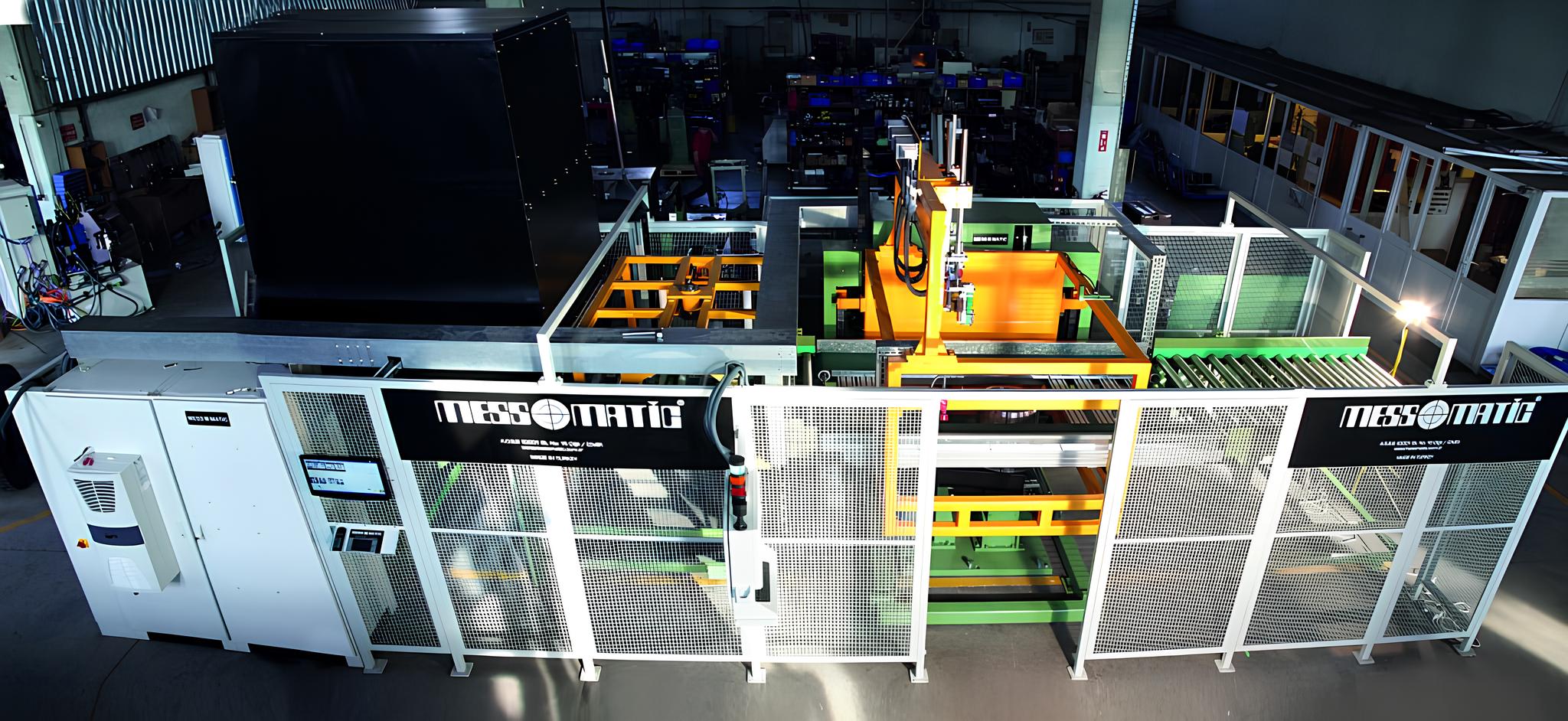

Automatic tire balancing machine is an industrial vertical balancing machine designed for tire manufacturers. It is an automatic balancing machine for static imbalance measurement of solid metal-cord truck tires with bead seat diameter 20” - 25”. The machine is equipped with marking device for static unbalance position and marks the tire according to the balance grade. The tire model is automatically recognized by a camera imaging system.
• Automatic loading / unloading, automatic tire centering
• Automatic tire type recognition by camera imaging system
• Entrance / Exit conveyors

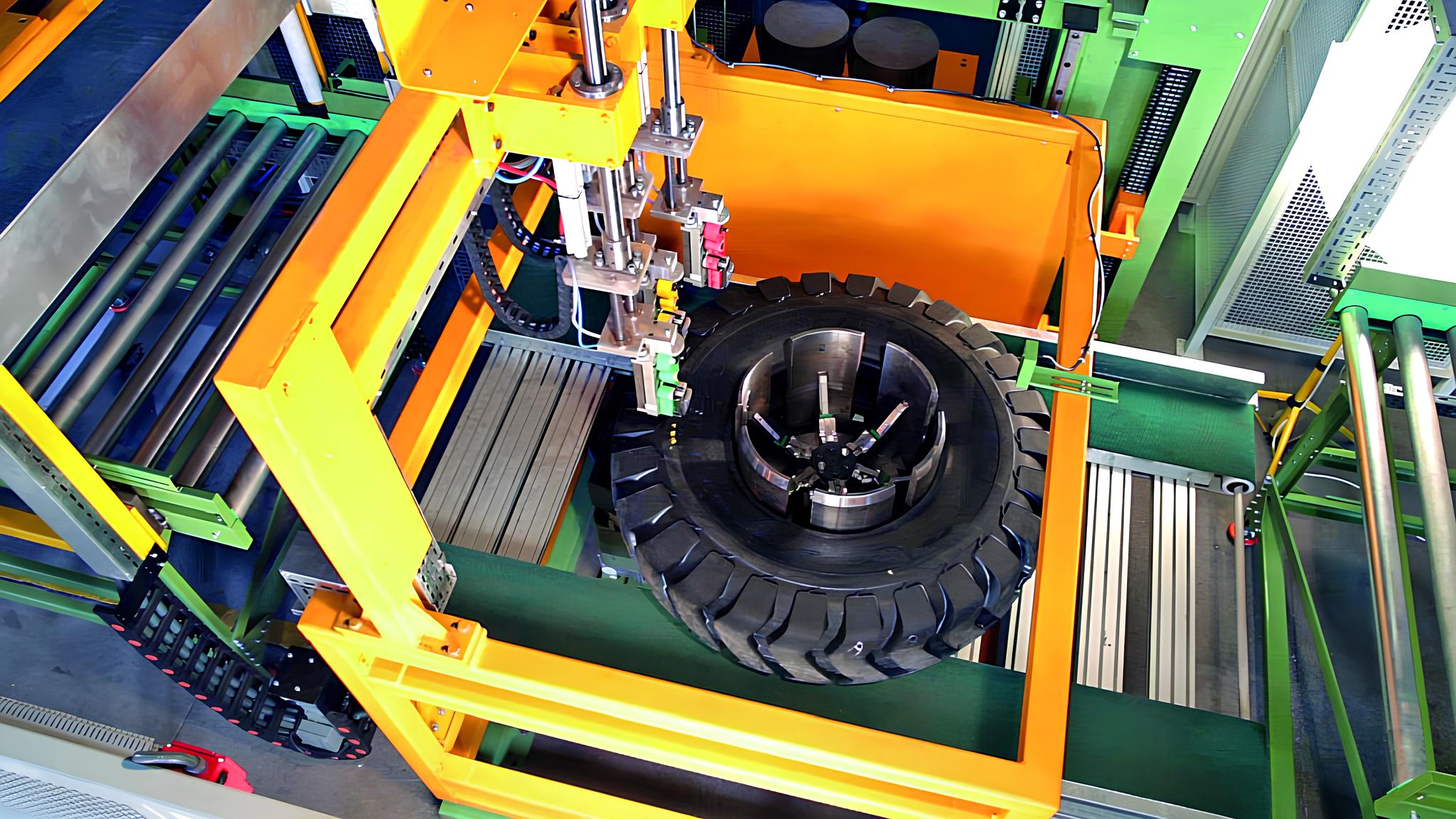

• Automatic clamping
• Automatic positioning according to heaviest or lightest point
• Automatic 3 different colored marking according to balancing grade
• Automatic / Manual mode
• Easy operation, user friendly software
• Self - Calibration
• Monitoring the unbalance value, angle, tire type on the main screen
• Ethernet network connection
• Automatic system backup, and database save
• Automatic loading / Unloading system - Robot / Conveyor
• Automatic tire type recognition

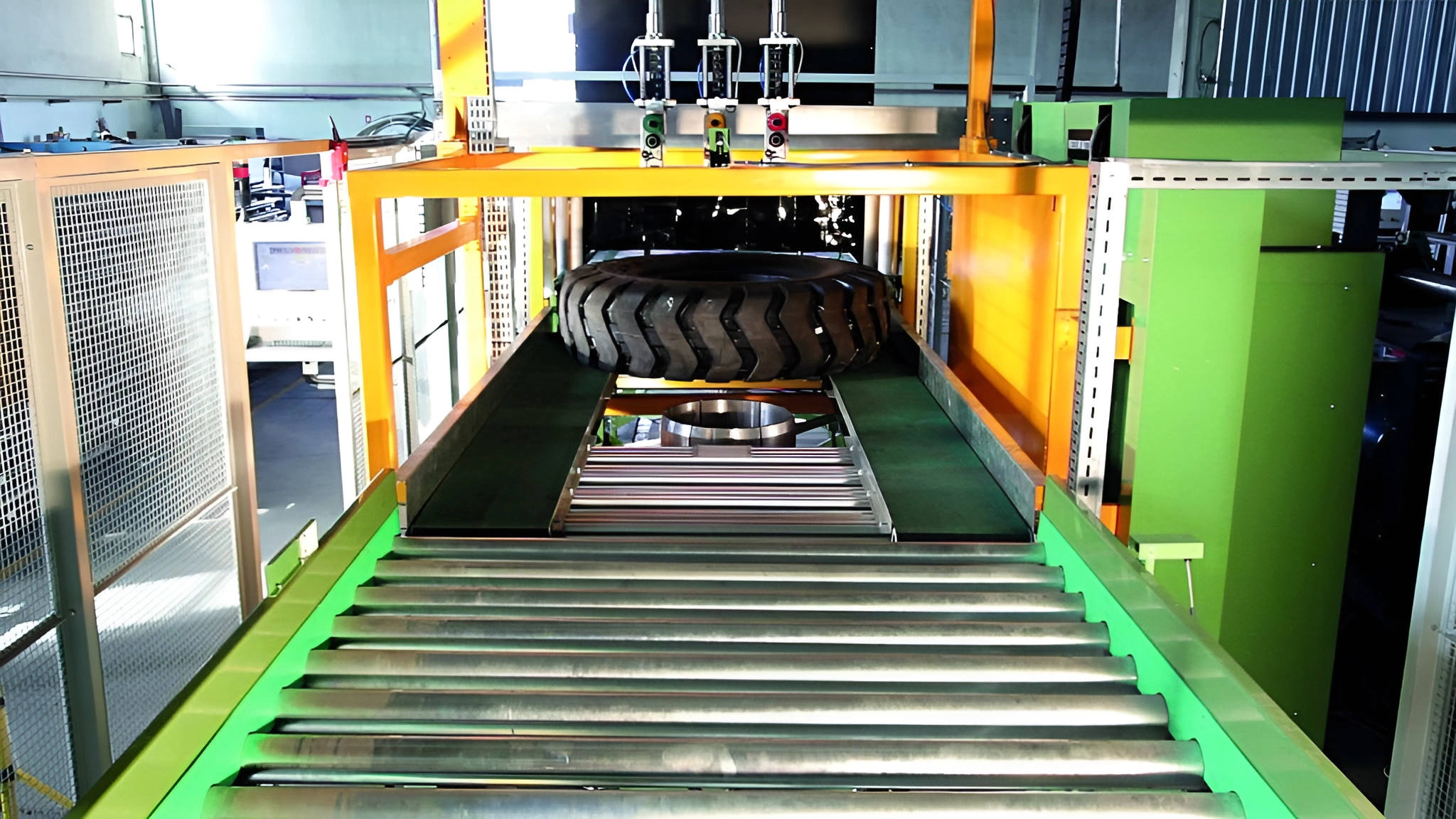

• Entrance / Exit conveyor system – Automation

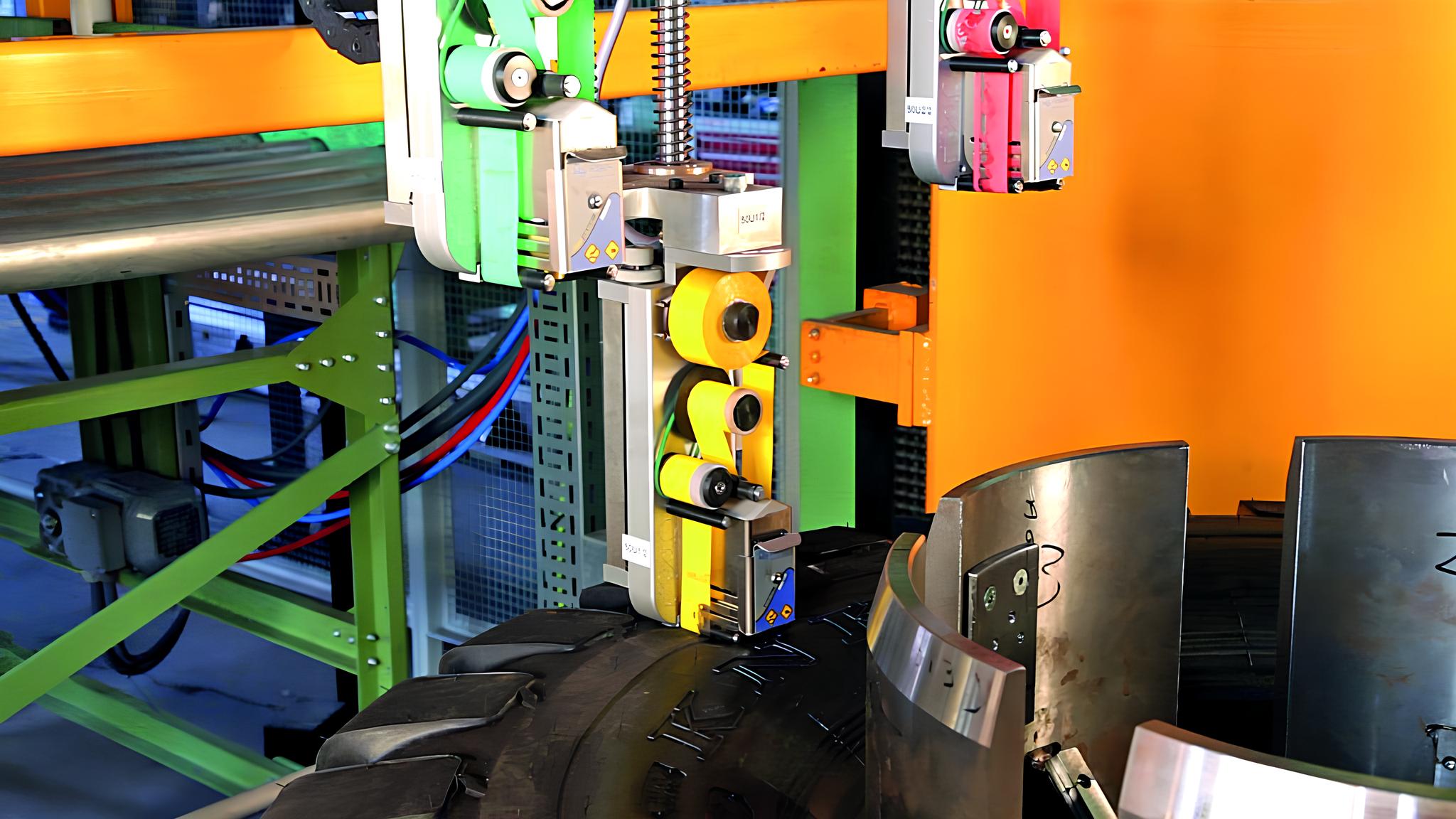

• Automatic marking
Technical Specifications
Downloads
Videos
More Information
| Technical Specifications | Unit | SER 02 STC | SER 02 STC TRUCK |
| Main Motor | Servo | Servo | |
| Measuring Type | Static - Dynamic | Static - Dynamic | |
| Automatic Loading / Unloading | Optional | Optional | |
| Marking | Optional | Optional | |
| Tire Type Recognition | Optional | Optional | |
| Maximum Tire Weight | kg | 100 | 250 |
| Tire Diameter | inch | 14" - 22" | 20" - 25" |
| Cycle Time | sec. | 140 | 180 |
