Hector - Wheel Balancer

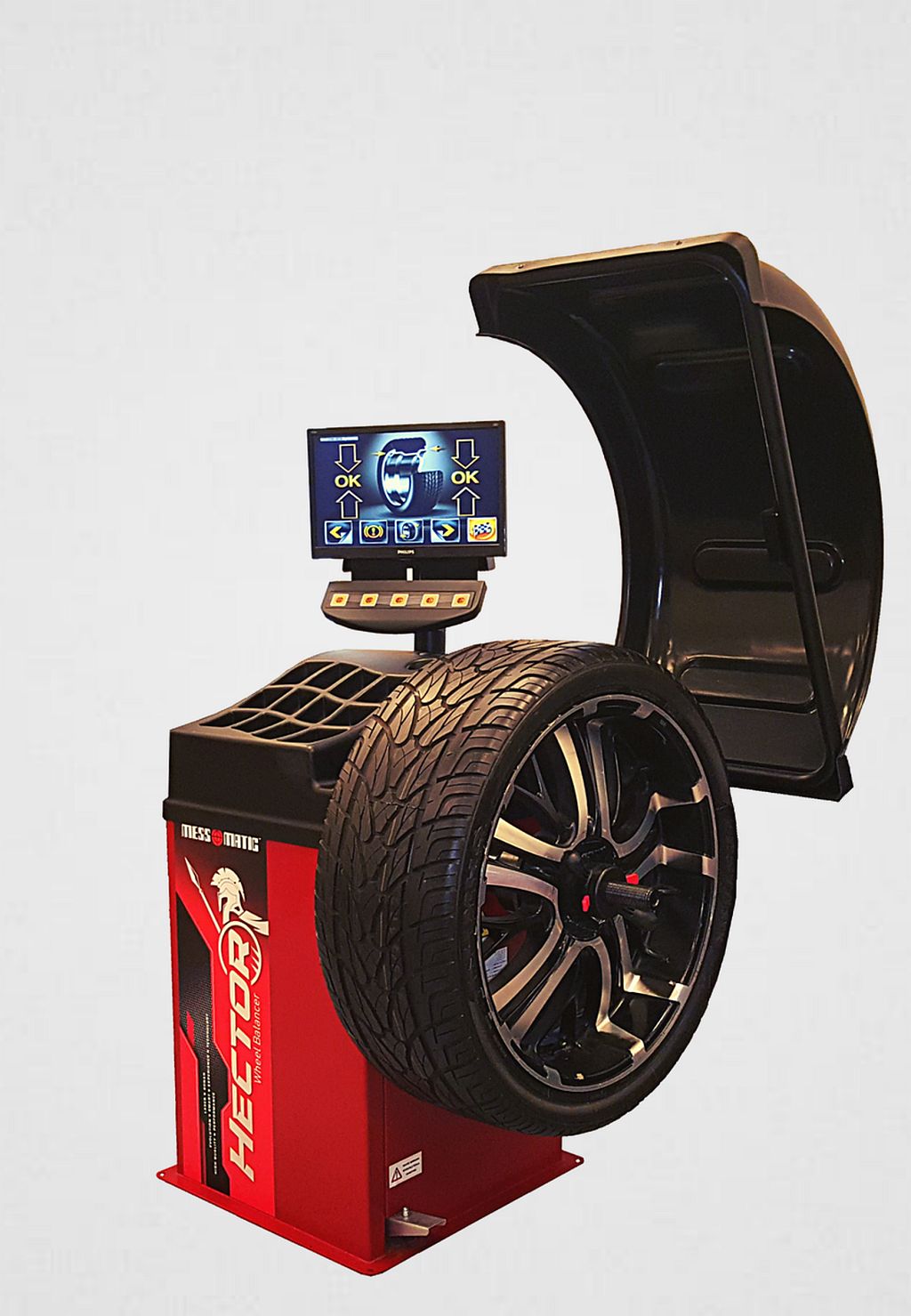

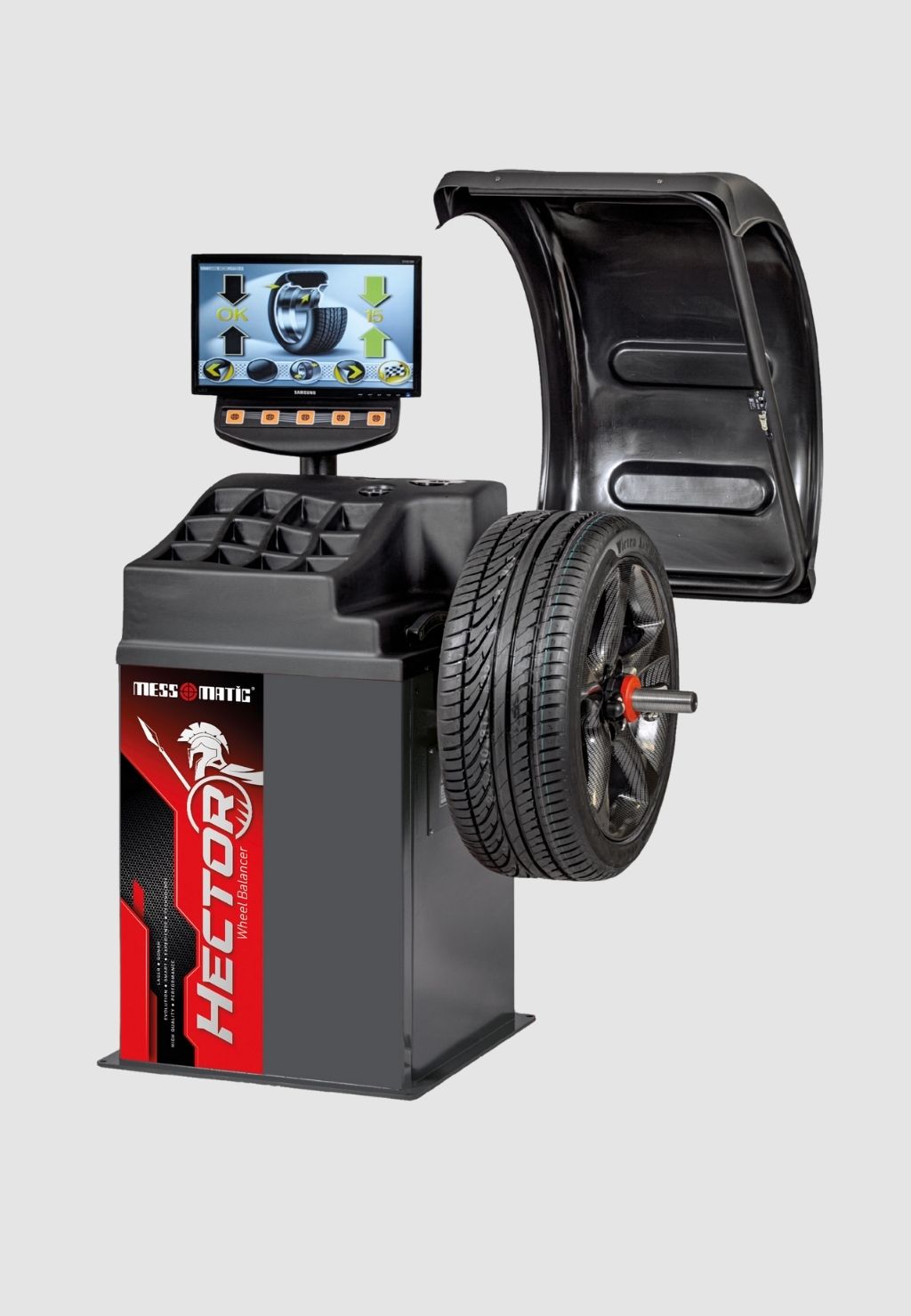

Hector - Wheel Balancing Machine

Hector wheel balancing machines are essential equipment used to ensure the balance of car wheels and rims. These machines enhance driving comfort by ensuring tires rotate smoothly and evenly, thereby extending the life of wheels and rims. Additionally, a balanced tire-rim combination improves vehicle performance and optimizes fuel efficiency.

Hector wheel balancing machine distinguishes itself with its heroic performance, durability, and robustness, proving its leadership in the industry. It instills confidence in every balancing task while ensuring flawless balance for all wheels. Hector is a next-generation wheel balancing machine equipped with an LCD screen, new interface, micro switch sonar, and a powerful motor. Like an unwavering hero on the battlefield, it withstands challenging conditions. Its sturdy and durable structure ensures reliable performance even in the toughest jobs, standing strong for years to come.

  • 19" LCD monitor
  • Easy operation via multi-functional symbols and keypad
  • Automatic start controlled by hood switch
  • Ergonomic lead weight tray
  • Foot brake pedal for easy tire mounting and lead hammering
  • Automatic positioning of outer surface unbalance point after rotation
  • Automatic positioning of inner surface unbalance point with a single button
  • Special 4-user program capable of storing information for 4 different wheel measurements
  • Special ALU/ALU-S/ALU-S1 programs for aluminum wheels
  • Optimization program for concealing lead division and wheel arms for multi-spoke aluminum wheels
  • Automatic input for distance-diameter information

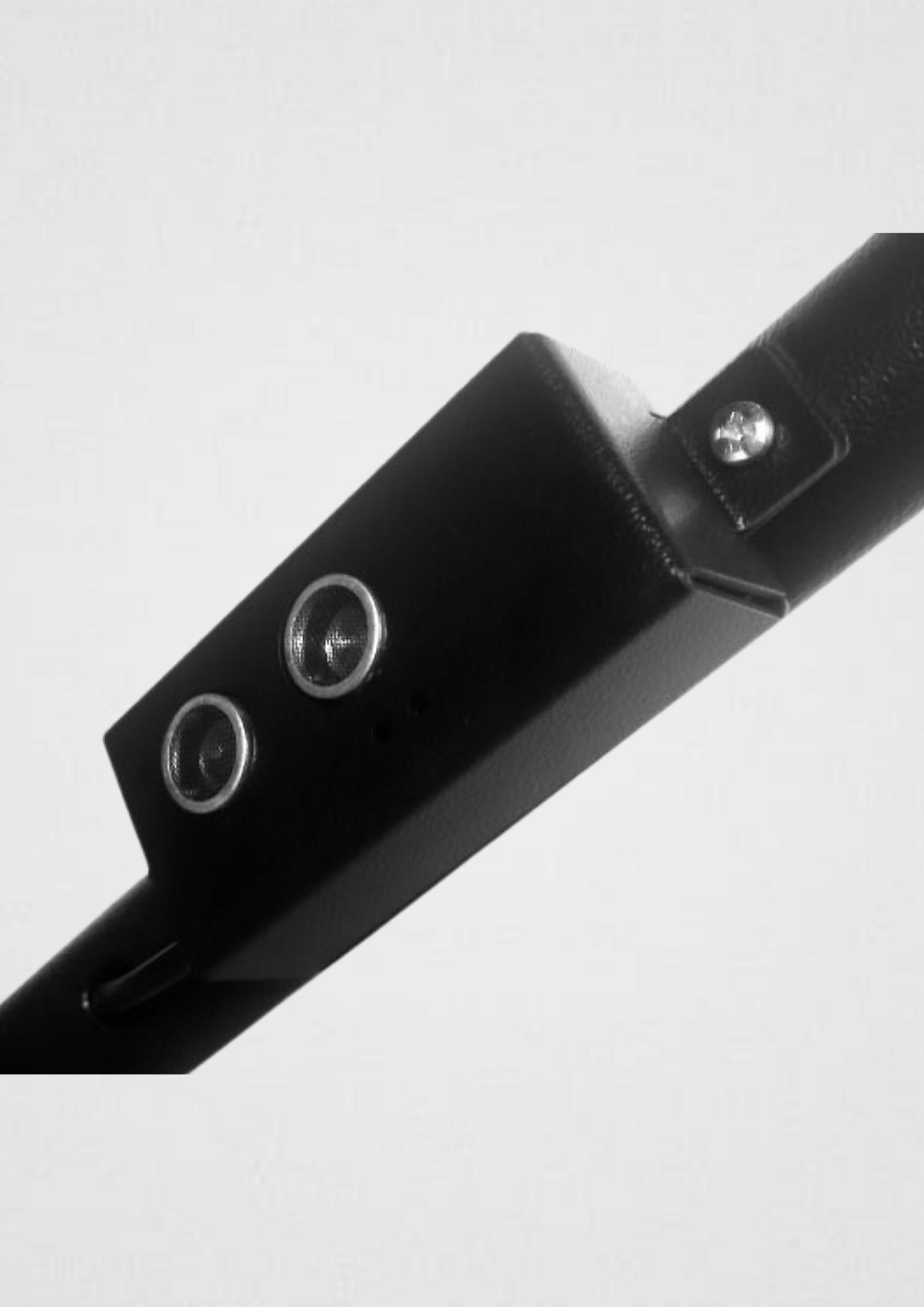

  • Automatic width measurement with sonar system


  • Cone No. 1-2 combined
  • Cone No. 3-4
  • Clamping Sleeve
  • Plier


  • 2 Pieces universal Ford cone
  • 5 Wheel bolt apparatus (for rims with closed hub)
  • Airlock - Mechanical with air tightening
  • Touchscreen


Technical Specifications

Downloads

Videos

More Information

Technical Specifications Unit Pro/S Plus Pro/S Raptor Hector Monster
Vehicle Type Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Truck, passenger and light commercial vehicles
Max. Wheel Weight kg 90 90 90 90 250
Rim Diameter inch 10" - 30" 10" - 30" 10" - 30" 10" - 30" 10" - 30"
Rim Width inch 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20"
Cycle Time sec. 7 7 7 7 7 - 20
Rotation Speed rpm 200 100 100 100 200 rpm (for Passenger Cars) - 80 rpm (for Trucks)
Sensitivity gr 1 1 1 1 1
Power 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz.
Air Pressure bar 7-10 7-10 7-10 7-10 7-10

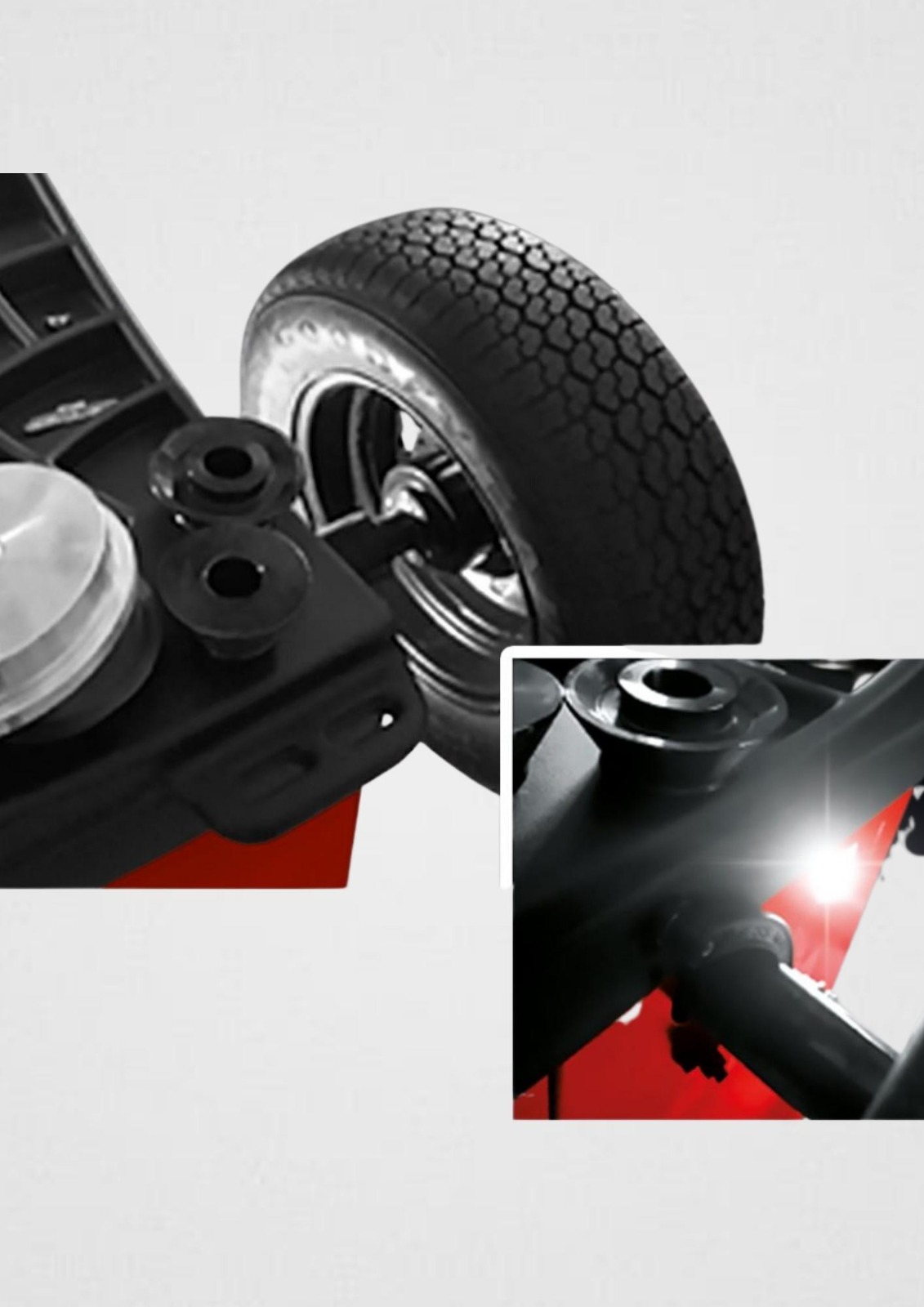

Led Light
Sonar X

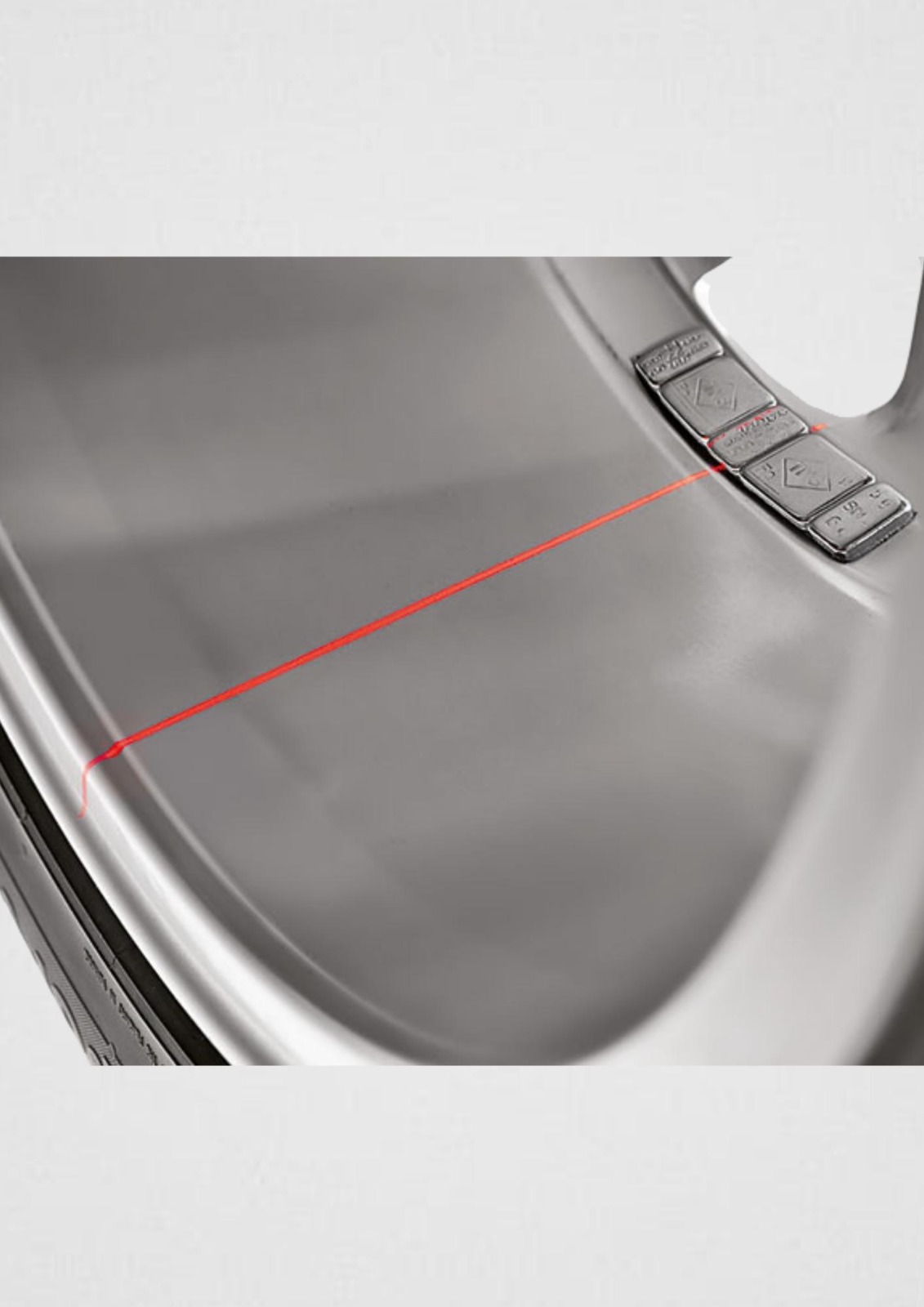

Line Laser
Point Laser X X X X
Clamping Type Pneumatic Wing Nut Wing Nut Wing Nut Wing Nut
Display inch 19" 19" 19" 19" 19"
