Pro S - Wheel Balancer

Pro/S - Wheel Balancing Machine

Wheel balancing machines are crucial equipment used to ensure the balance of automobile wheels and rims. These machines enhance driving comfort by ensuring tires rotate smoothly and evenly, thereby extending the life of wheel and rims. Additionally, a balanced wheel-rim combination improves vehicle performance and optimizes fuel efficiency.

Our Pro/S wheel balancing machine is equipped with an LCD screen, LED lighting, dual lasers, micro switch sonar, automatic measurement technology, and a powerful motor. These features enable users to easily monitor operations. Multi-functional symbols and keypads assist operators in performing tasks quickly and accurately. Safety measures such as automatic pneumatic braking in unbalanced positions are present in our Pro/S wheel balancing machine. Furthermore, the display of unbalanced points on the inner and outer surfaces using laser technology makes the process more precise.

  • 24" LCD screen
  • Easy operation via multi-functional symbols and keypad
  • Automatic start controlled by hood switch

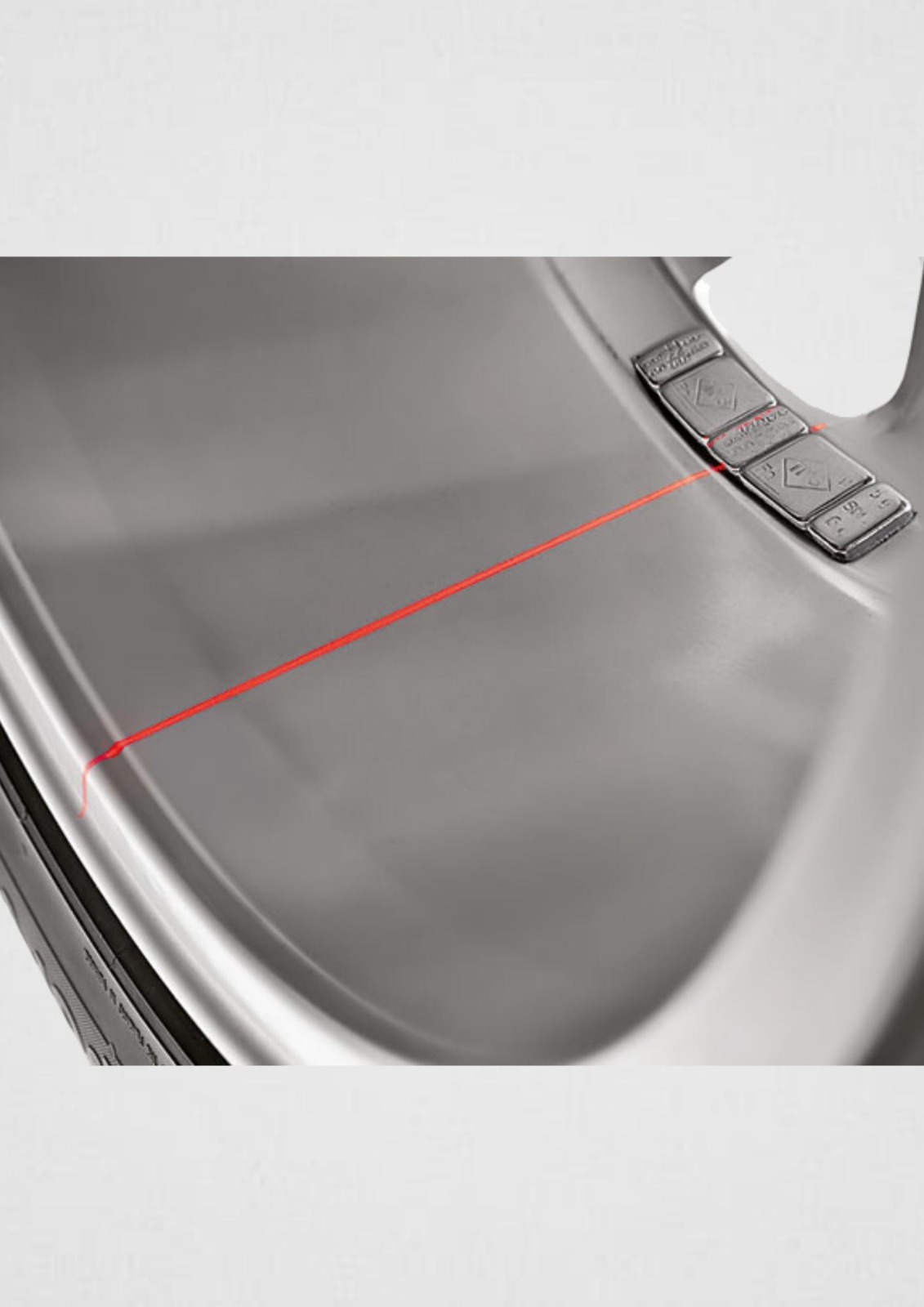

  • Display of inner surface unbalance point with laser
  • Automatic positioning of outer surface unbalance point after rotation
  • Automatic positioning of inner surface unbalance point with a single button
  • Automatic information sheet for distance diameter

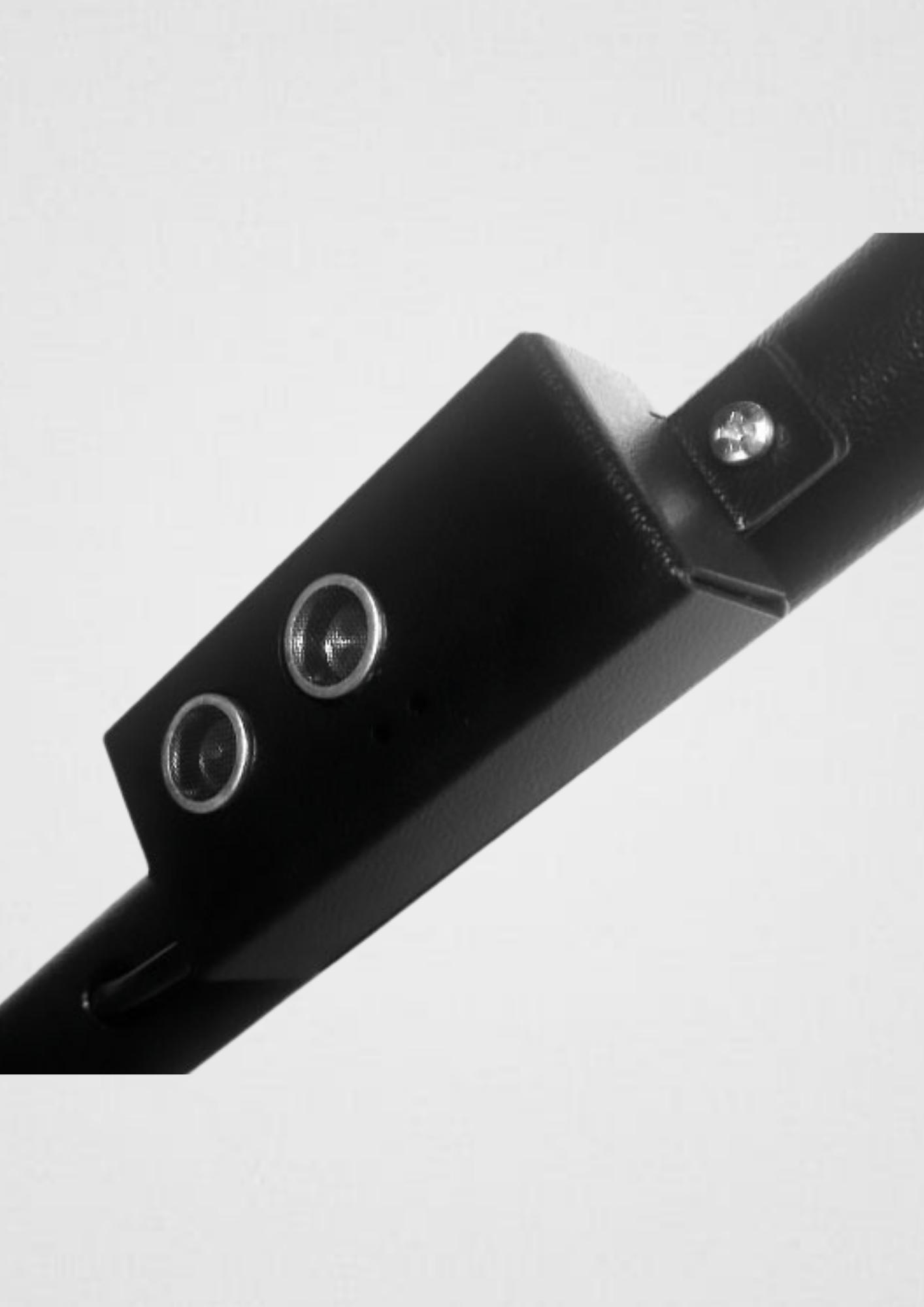

  • Sonar system (for tire width measurement)
  • Special 4-user program capable of storing information for 4 different wheel measurements
  • Pneumatic brake system
  • Optimization program for concealing lead division and wheel arms for multi-spoke aluminum wheels
  • Optimization program for compensating for unbalance between wheel and tire
  • Larger motor and card system for increased precision
  • Automatic wheel selection with measurement arm
  • Pro/S Air Lock (optional)

  • Cone No. 1-2 combined
  • Cone No. 3-4
  • Clamping Sleeve
  • Plier

  • 2 Pieces universal Ford cone
  • 5 Wheel bolt apparatus (for rims with closed hub)
  • Airlock - Mechanical with air tightening
  • Touchscreen

Technical Specifications

Downloads

Videos

More Information

Technical Specifications Unit Pro/S Plus Pro/S Raptor Hector Monster
Vehicle Type Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Truck, passenger and light commercial vehicles
Max. Wheel Weight kg 90 90 90 90 250
Rim Diameter inch 10" - 30" 10" - 30" 10" - 30" 10" - 30" 10" - 30"
Rim Width inch 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20"
Cycle Time sec. 7 7 7 7 7 - 20
Rotation Speed rpm 200 100 100 100 200 rpm (for Passenger Cars) - 80 rpm (for Trucks)
Sensitivity gr 1 1 1 1 1
Power 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz.
Air Pressure bar 7-10 7-10 7-10 7-10 7-10
Led Light
Sonar X
Line Laser
Point Laser X X X X
Clamping Type Pneumatic Wing Nut Wing Nut Wing Nut Wing Nut
Display inch 19" 19" 19" 19" 19"
