Universal Shaft Balancing Machines
![](/depo/63962fedba7743dccab386eb/1707222571413.jpg)
![](/depo/63962fedba7743dccab386eb/1707222582378.jpg)
![](/depo/63962fedba7743dccab386eb/1707222589948.jpg)

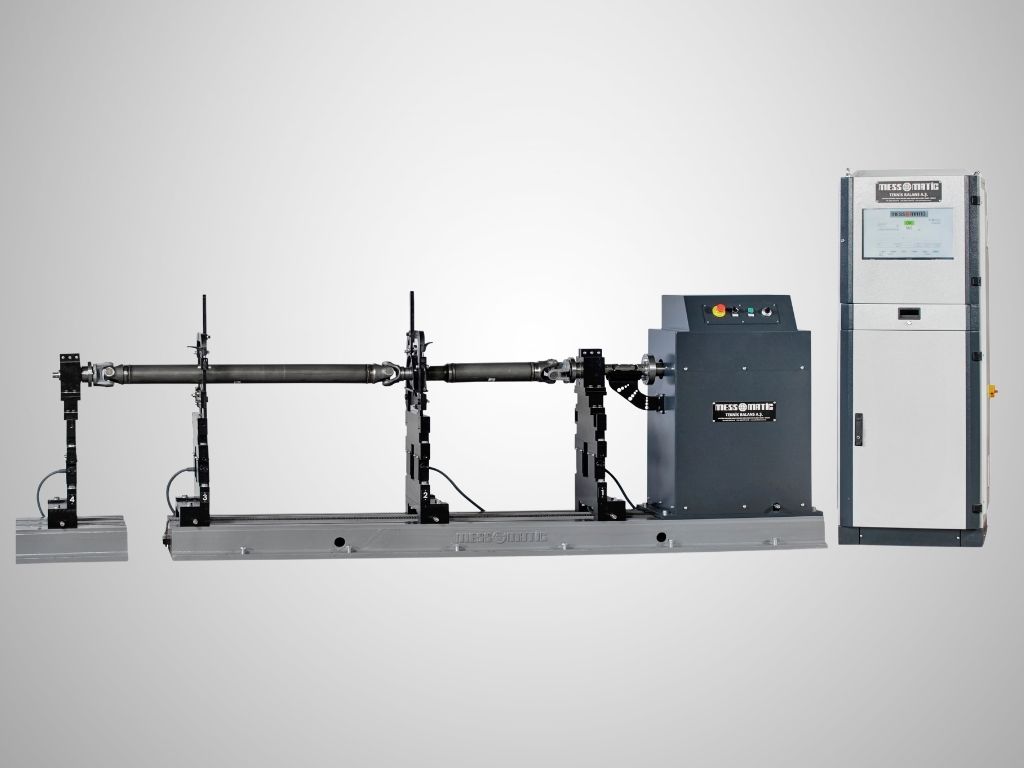

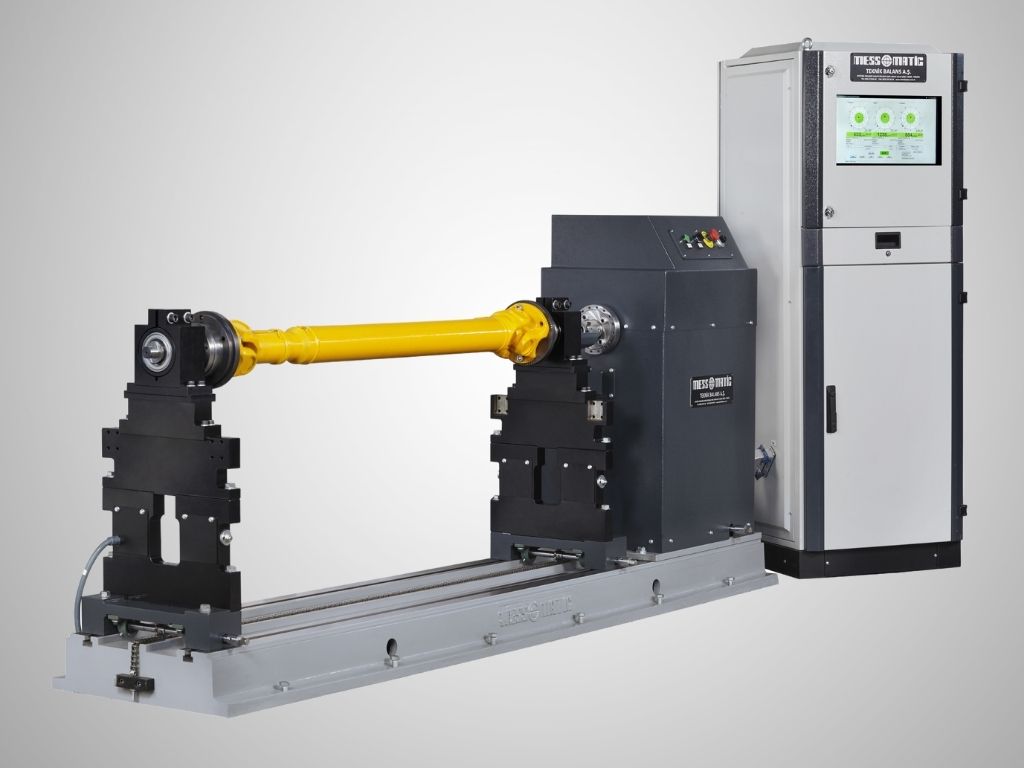

Universal series shaft balancing machines are designed for balancing of industrial and automotive shafts. Operation of balancing machines, is very easy and fast with computer controlled shaft balancing software. Optionally, a manual spot welding unit can be integrated into the system.
• High balancing accuracy
• Shaft connection fixtures
• Spot welding machine
• Safety & holder pedastals
• Special protection cage
Technical Specifications
Downloads
Videos
More Information
Technical Specifications | Unit | SYM 4500 SHAFT | SYM 5300 SHAFT | SYM 5700 SHAFT | SYM 5900 SHAFT |
Maximum Rotor Weight | kg | 150 | 300 | 700 | 1100 |
Machine Axis Height (Bench) | mm | 375 | 475 | 720 | 720 |
Shaft Length | mm | 1700 | 2500 | 2500 | 2500 |
Shaft Tube Diameter | mm | Ø50 - Ø200 | Ø50 - Ø200 | Ø50 - Ø240 | Ø50 - Ø270 |
Balancing Speed | rpm | 100 - 5000 | 100 - 5000 | 100 - 5000 | 100 - 5000 |
Bench Length | mm | 3000 | 3000 + 1000 | 3000 + 1000 | 3000 + 1000 |
Air Pressure | bar | 6 | 6 | 6 | 6 |
Optional Bench Length | mm | 1000 - 3000 | 1000 - 3000 | 1000 - 3000 | 1000 - 3000 |
